Description

Tripod not included

Features

Following up on the success of the iOptron CEM60 center balance equatorial mount, we at iOptron are excited to introduce two new medium payload center balance mounts.  The CEM70 and revolutionary CEM70G are new standard bearers for equatorial mounts in the 70lb payload segment.  Both models are packed with advanced features however the CEM70G is the first of its type with an onboard optical guiding system increasing tracking accuracy while streamlining the components resulting in a more portable imaging setup.

Retaining the inherent properties of the center balance design, these relatively compact medium payload mounts deliver what astronomers expect in an efficient accurate portable mount.  With precise GOTO pointing and accurate tracking (PE <±3.5 arcsec) the CEM70 is a solid performer for observers and imagers alike.

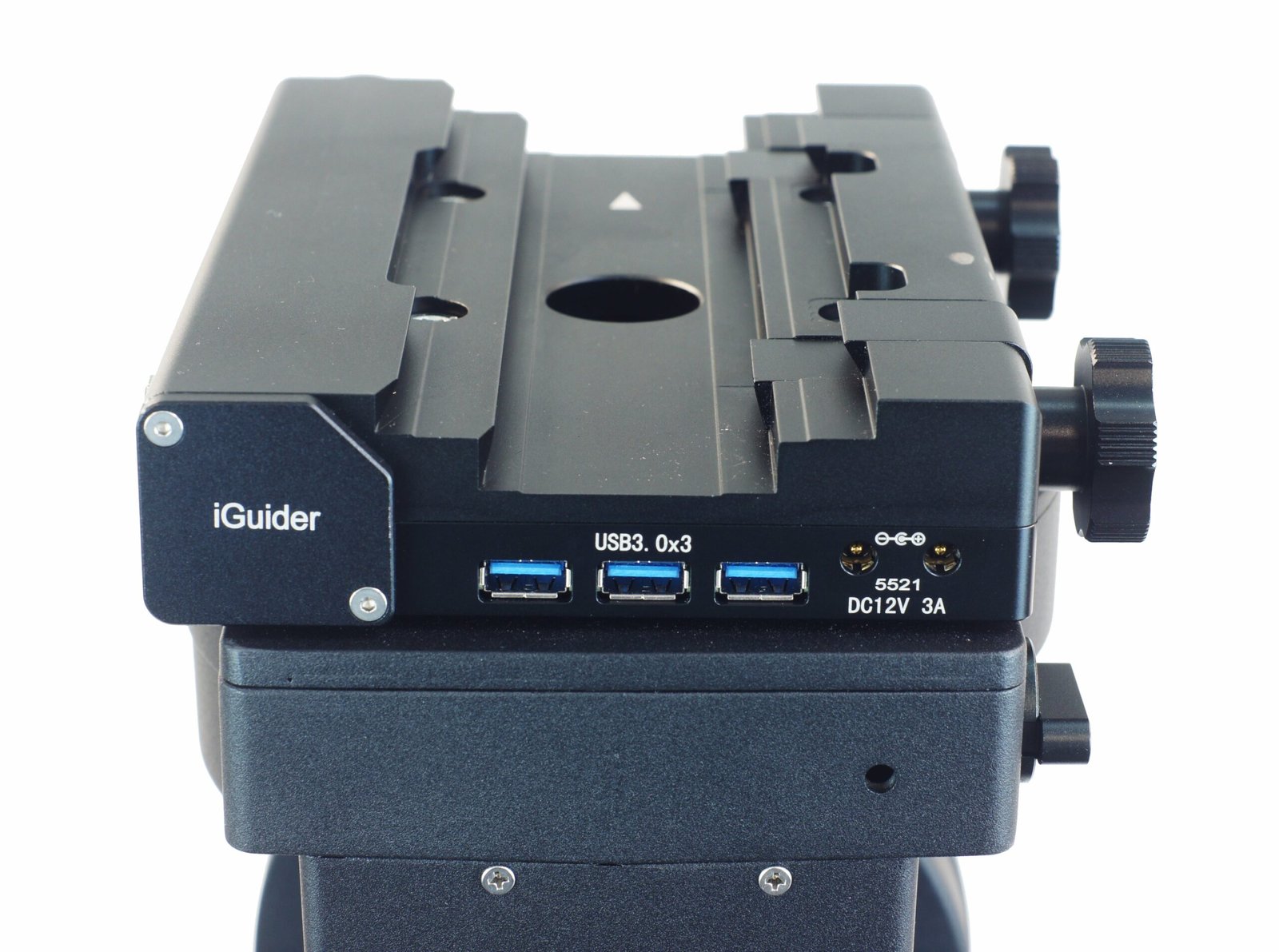

Innovative operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (levers large enough to use with gloves), an advanced cable management system for the mount, iPolar, guider, and camera, and cumulatively assure users the CEM70 and 70G designed with their needs in mind. On top of the built-in guiding system the CEM70G also comes standard with WiFi and USB 3.0.

Specifications
ManufactureiOptroniOptron
ModelCEM70-GCEM70
Mount TypeCEM (Center balanced EQ Mount)CEM (Center balanced EQ Mount)
Payload (excl. CW)31.8 kg(70 lbs)31.8 kg(70 lbs)
Mount Weight13.6 kg (30 lbs)13.6 kg (30 lbs)
Payload/Mount Weight2.332.33
Latitude Adjustment Range 0~65° 0~65°
Azimuth Adjustment Range ±4° ±4°
Tracking Accuracy (PE)< ±3.5 arcsec< ±3.5 arcsec
Period348 sec348 sec
Right Ascension Worm Wheel248 teeth M=0.6 Ø151 mm248 teeth M=0.6 Ø151 mm
Declination Worm Wheel248 teeth M=0.6 Ø151 mm248 teeth M=0.6 Ø151 mm
Worm Ø21.2 mm Ø21.2 mm
Right Ascension AxleØ55 mm steelØ55 mm steel
Declination AxleØ55 mm steelØ55 mm steel
Right Ascension BearingsØ80mmØ80mm
Declination BearingsØ80mmØ80mm
Counterweight ShaftØ28 x 415 mm (SS, 1.9kg)Ø28 x 415 mm (SS, 1.9kg)
Counterweight9.5 kg x 19.5 kg x 1
Mounting Base DiameterØ152mmØ152mm
Motor1.8° stepper motor w/128 micor-step1.8° stepper motor w/128 micor-step
Resolution0.07 arcsec0.07 arcsec
TransmissionSynchronous beltSynchronous belt
Hand ControllerGo2Nova 8407+;  8 line 21 character LCDGo2Nova 8407+;  8 line 21 character LCD
PowerDC 12V, 5ADC 12V, 5A
Power Consumption0.6A (tracking), 0.8A (GOTO)0.6A (tracking), 0.8A (GOTO)
Polar ScopeInternal eletronic polar scope, iPolarInternal eletronic polar scope, iPolar
Meridian treatmentStop (0-10° pass), flipStop (0-10° pass), flip
Zero positionAutomatic zero searchAutomatic zero search
Park positionhorizontal, vertical, current, alt/azi inputhorizontal, vertical, current, alt/azi input
Dovetail saddle8″ Losmandy D & Vixen8″ Losmandy D & Vixen
Level IndicatorYESYES
Slew speed3.75°/sec (900x) max.3.75°/sec (900x) max.
PECPermanent PECPermanent PEC
Guiding PortST-4ST-4
communication PortUSB3.0, WifiUSB2.0
GPSYESYES
Cable Management2xDC12V (3A),  3xUSB3.0,  1xDC in/2xDC out, iPort.      1X USB input for mount, iGuider, iPolar and more2xDC12V (3A),  3xUSB2.0, 1xDC in/1xDC out, iPort.     1X USB input for mount, iPolar and accessories
Guiding scope/cameraBuilt in guiding scope and camera, iGuiderNo
Operation temperature range-20°C ~ +45°C-20°C ~ +45°C
Hard caseYESYES
Pier/TripodOptional LiteRoc tripod or pierOptional LiteRoc tripod or pier
Additional information
Weight 69.999 lbs
