Strainwave mounts are particularly suitable for serious astronomers and astrophotographers who require precise control over their telescope’s movements.

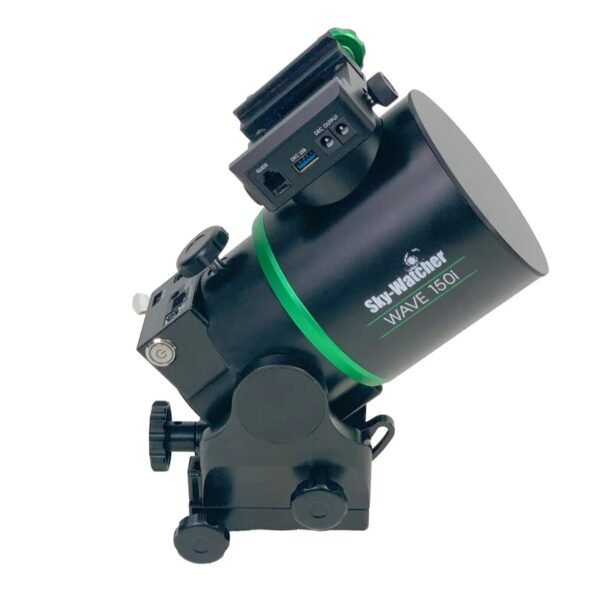

Weighing only 12.8 pounds and carrying a 33-pound payload (55lb. in EQ mode with the optional counterweight kit), With cable management built into the saddle, large payload capacity, and a small footprint, the Wave 150i is the ultimate portable imaging mount. Also featuring a whisper-quiet slew speed of 10 degrees per second, our new strainwave mounts can even track satellites and space stations.
The Wave series features a total line of accessories to complete your astronomical experience, including carbon fiber tripod, pier extension, and stainless steel counterweight kit.
| General Mount Info | |
|---|---|
| Mount type (AZ, EQ or borth) | AZ/EQ |
| Mount capacity w/o weight | 33 pounds |
| Mount capacity w/ weight | 55 pounds |
| Mount head size | 252mm x158mm x 184mm |
| Mount head weight | 12.8 pounds |
| Mounting Thread Size | 3/8″-16 |
| Mounting Saddle type | D/V-style |
| Counterweight bar? | Optional |
| Type of motor | Stepper |
| Drive type (belt, gear, direct, etc…) | Belt |
| RA Gear Ratio | 101 x 3 |
| Dec gear ratio | 84 x 3.4 |
| Clutch type | Strain-Wave |
| Tracking Modes | Sideral, Solar, Lunar |
| Maximum Slew Speed | 7.5 degrees/second |
| Latitude range (in degrees) | 0° to 90° |
| Operational Temperature | 14° F ~ 131° F (-10°C ~ 50°C) |
| Computer/Drive System Info | |
| GoTo | Yes |
| Freedom Find? | No |
| Hand controller port | Yes |
| Guide Port? | Yes |
| SNAP Port? | No |
| PC connect USB port? | Yes |
| Cable management? | Yes |
| Cable management: USBs (how many and type) | USB 2.0 (1x) |
| Cable management: USBs hub powered? | No |
| Cable management: Power ports (how many and type) | Two (2.5mm/5amp DC Max) |
| Cable management: AUX ports (how many and type) | None |
| Built-in GPS? | No |
| Built-in WiFi? | Yes |
| Hand controller? | No |
| GoTo Database | 42,000+ |
| Power requirements? | DC12~16v, 2A |
| Internal Battery Pack | No |
| Mount power port size and style | 2.1mm Center-Positive |
| Mount Accessories | |
| Hand Controller | No* (Optional) |
| Tripod | No* (Optional) |
| Accessory Tray | No* (Optional) |
| Tripod Extension | No* (Optional) |
| Power Cable | Included |
| Additional Accessories | USB-B 2.0 update cable |
| Secondary Saddle | No |
| Motor Controller Box | No |
| Motor Cables | No |
| Hand controller Holder | No |
| Manual | Yes |
| Case | Yes |
| Weights and Dimensions | |
| Shipping Weight | 20.7 pounds |
| Shipping Dimensions | 17″ x 14.2″ x 11.2 |
| Weight | 30.0005 lbs |
|---|
